Yibin High-speed Railway Station Square Commercial Building

This project is scheduled for 2024 and is located in Yibin City, Sichuan Province. The seismic fortification intensity is 7 degrees. It is a commercial building in the front square of Yibin Railway Station, with a total area of 843 square meters. It has one floor above ground and two floors underground.

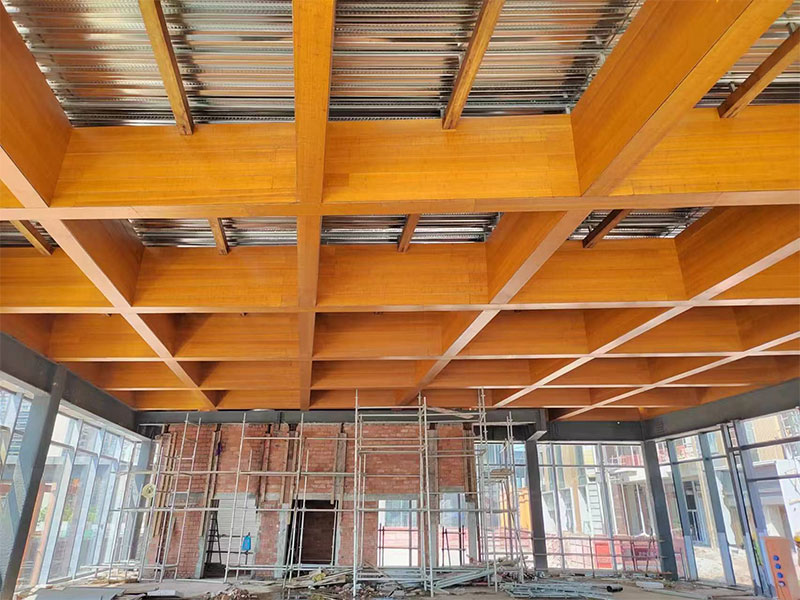

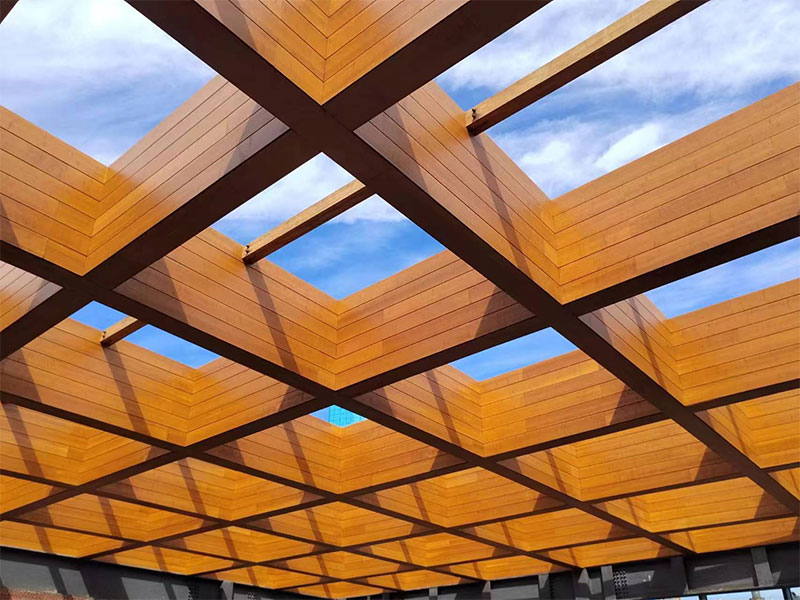

The lower part of the building is a steel frame structure. The roof adopts the flat truss of the BambooSteel® brand reconstituted bamboo, with a bamboo truss surface structure. The height from the ground is 6.8 meters, and the span of the roof truss is 18 meters. The single building uses 19 cubic meters of BambooSteel. Adopting factory production and assembly installation, compared with traditional steel structures, it saves nearly half of the installation time and has a more favorable cost analysis.
